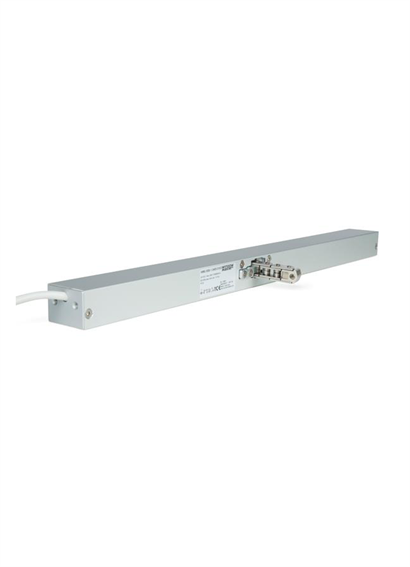

Windowmaster WMU 836 Chain Actuator 400-1000mm

From £383.04

Manufactured by Windowmaster

Colour

Voltage

Stroke

Brackets

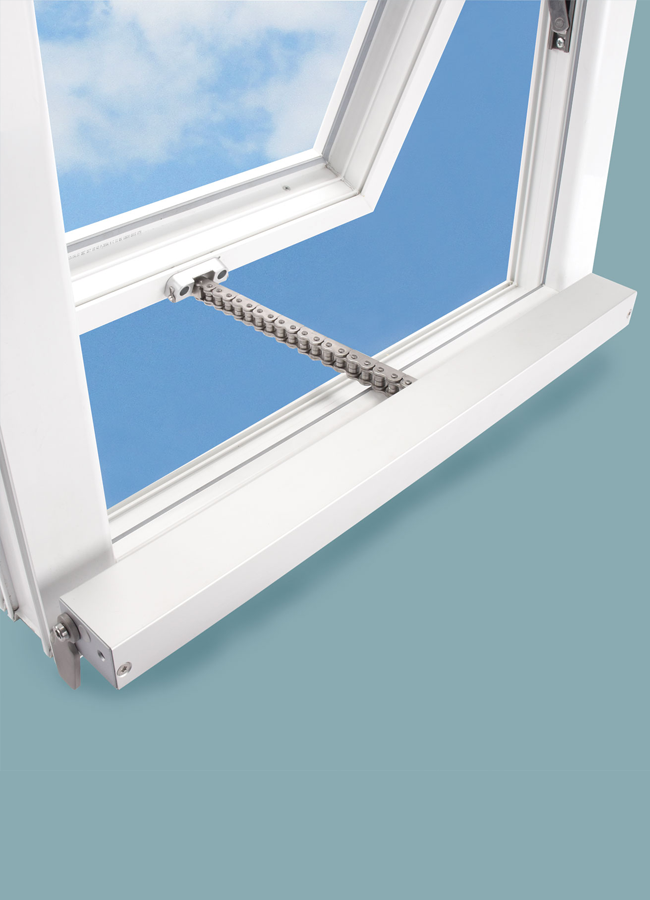

Windowmaster WMU 836 AOV actuator designed for use on most windows and lightweight roof vents. With a choice of larger stroke options it makes it an ideal choice for many smoke control applications.
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
STROKE OPTIONS
  • 400mm
  • 600mm
  • 800mm
  • 1000mm
CONTROL OPTIONS
  • 24V DC - WSC 204, WSC 204KP, WUC 101, WUC 102
SUITABLE FOR
  • Top-Hung, Bottom-Hung, Side-Hung or Centre Pivot windows
  • Smoke Ventilation / AOV / Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • WMU 836-1 0400 0103 (WMU 836 24V 400mm Silver)
  • WMU 836-1 0600 0103 (WMU 836 24V 600mm Silver)
  • WMU 836-1 0800 0103 (WMU 836 24V 800mm Silver)
  • WMU 836-1 1000 0103 (WMU 836 24V 1000mm Silver)
