Rooflight & Controls AOV Kit - 1m²

£3,449.82

Size

Colour

Voltage

Stroke

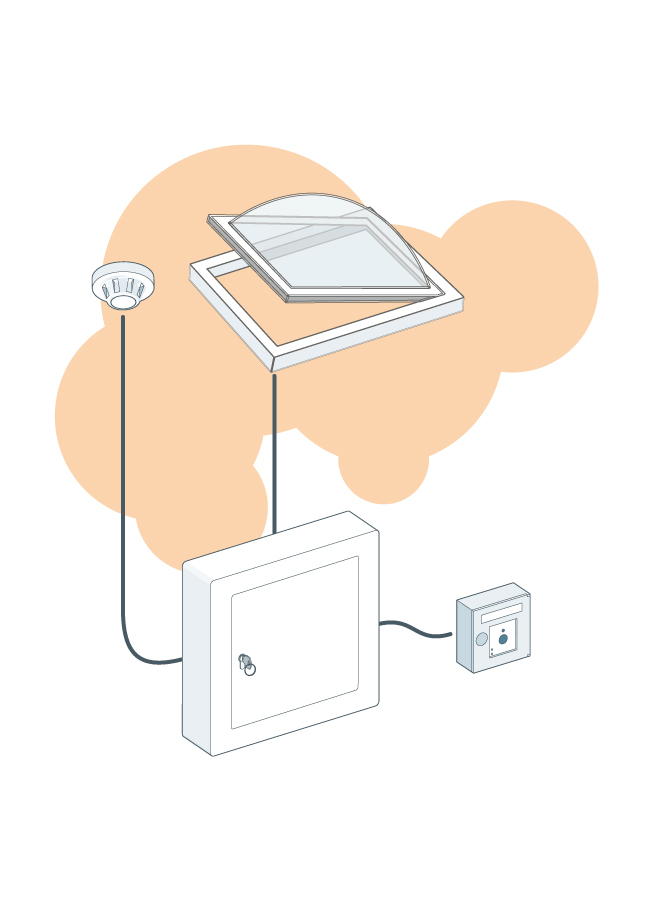

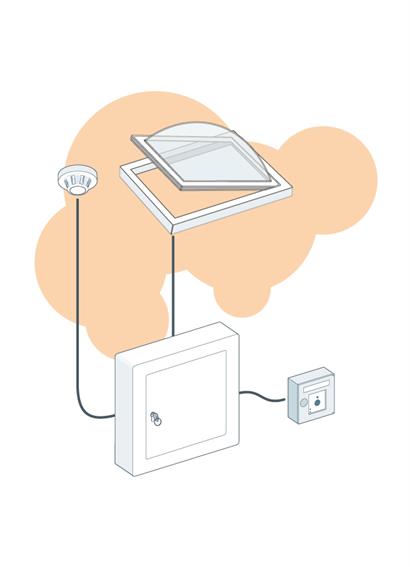

AOV Smoke Vent Kit to operate a single AOV within a stairwell. Supplied complete with WSC 310 Control Unit, WSK 501 Override Switch, SSR-D Smoke Sensor and SV-R-RL AOV Rooflight. Upon a signal from the smoke sensor the AOV Rooflight will automatically open, until the system has been reset. The WSK 320 override switch will allow the fire officer to manually trigger the AOV Rooflight to open or close. In the event of mains power failure the system can continue to run on battery power for up to 72 hours. All parts certified and tested in accordance to EN12101-2. Please refer to product datasheets and installation instructions for further information.

*Vents are made to order and typically take between 6-8 weeks for delivery, please contact our sales team for further details.*

**1050 x 1050mm is the internal opening size and the vent is designed for mounting down onto upstands by others. The external dimension for the upstand should be 1250 x 1250mm for our standard base. Please refer to download section for further details.**


WHAT'S IN THE BOX?

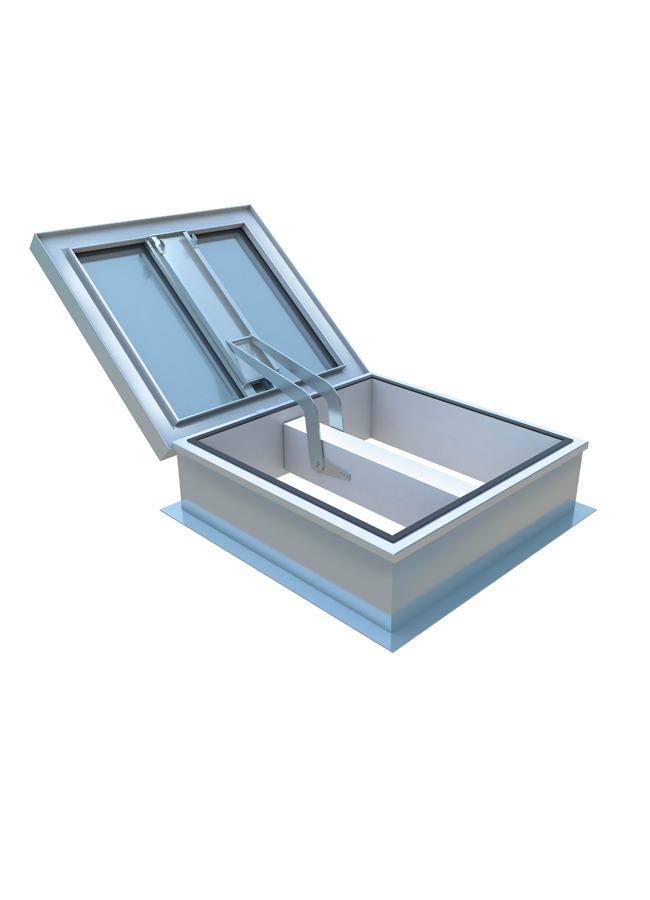

  • 1 x SV-R-RL AOV Rooflight

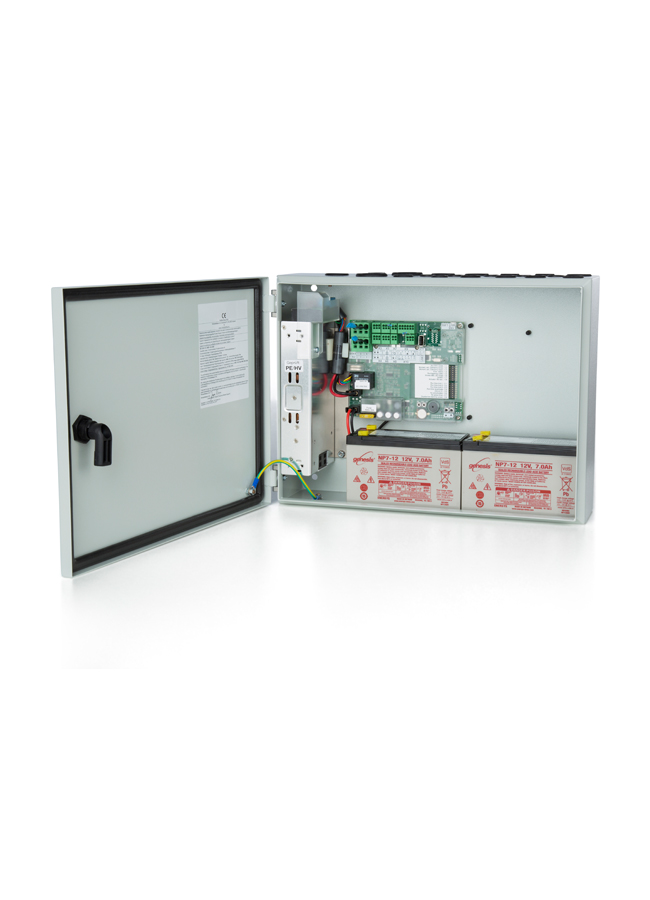

  • 1 x WSC 310 Control Unit

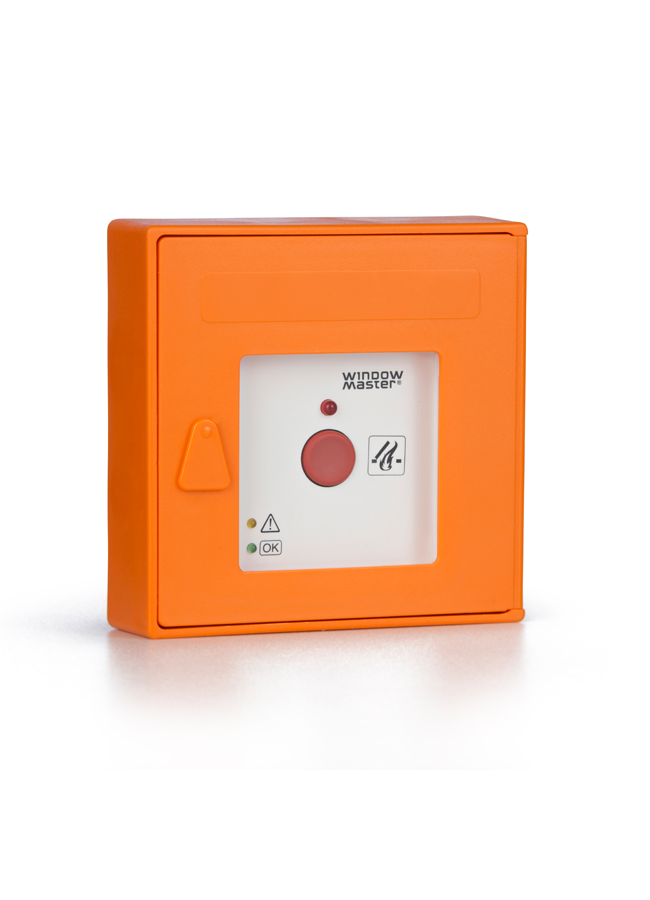

  • 1 x WSK 501 Override Switch

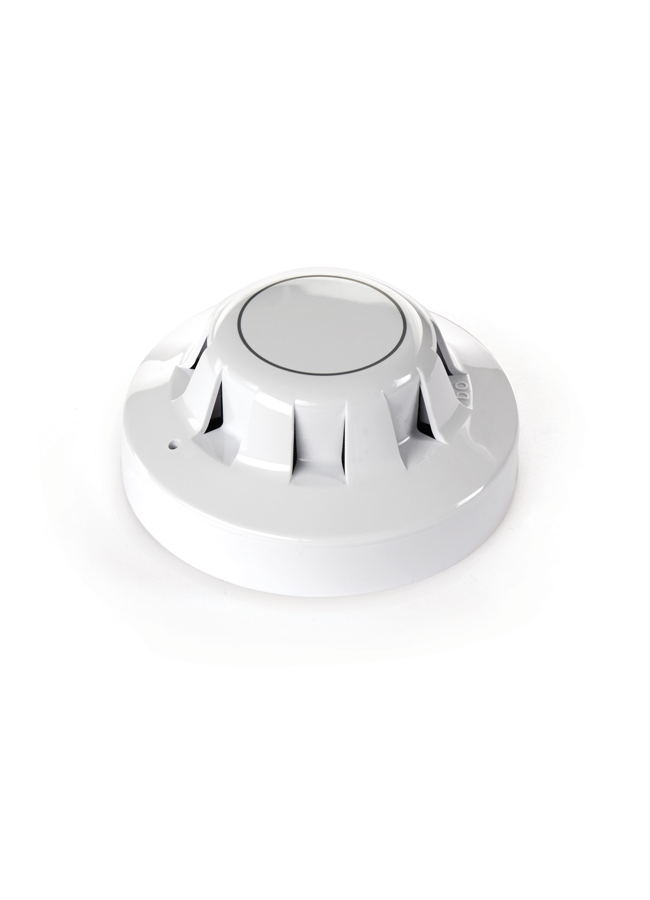

  • 1 x SSR-D Smoke Sensor
  • 1 x Installation instructions
WHAT ELSE WILL I NEED?
  • Forklift to accept delivery
  • Fixing screws
  • Cable (please refer to manual for correct cable sizes)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • White (Internal) / Mill Finish (External)
  • Bespoke finishes also available, please contact our sales team for further details

For any help or technical support please contact our sales team - 01242 622 958 | info@aovdirect.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@aovdirect.co.uk.
